🔧 Automotive Wire Tracer & Circuit Tester – 12V/24V Short & Open Circuit Finder
Hidden Wire Problem? Stop Guessing. Start Tracing.
When an electrical circuit stops working, finding the faulty wire can be the hardest part of the repair.
Meet the automotive wire tracer and circuit troubleshooting kit, designed to help you follow supported vehicle wiring paths and investigate possible short or open circuits.
With a signal transmitter, handheld receiver, flexible tracing probe, and connection clips, this diagnostic kit gives you a practical way to approach hard-to-follow wiring.
The Problem Isn't Always the Part. Sometimes It's the Wire.
A component isn't working. The fuse looks fine. The wiring disappears behind the dashboard.
What should be a straightforward repair can quickly turn into a frustrating search through unfamiliar wiring harnesses.
Without an organized tracing method, it's easy to spend too much time checking the wrong section of a circuit.

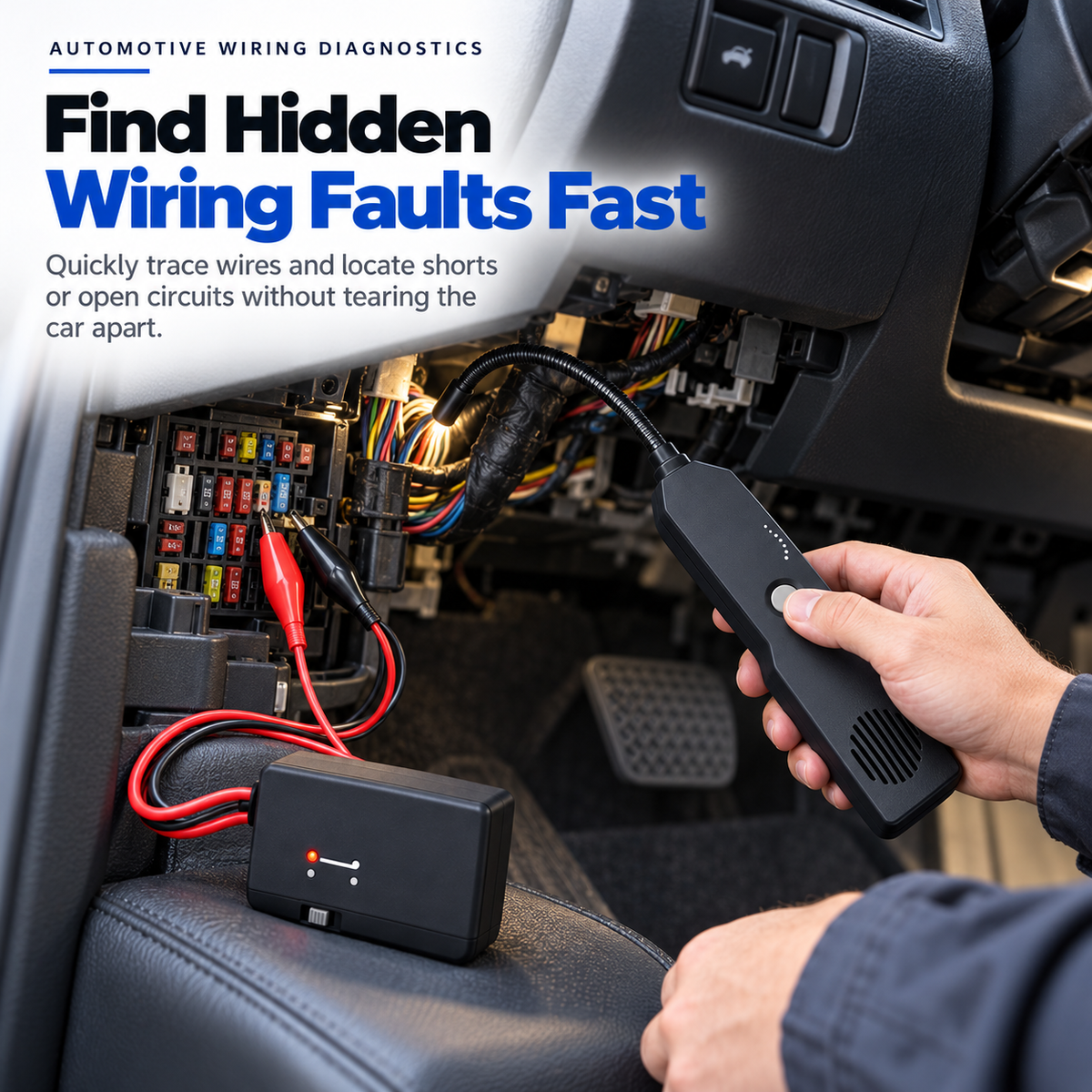

Trace Wires Where Your Eyes Can't Easily Follow.
Some of the most frustrating wiring problems are hidden in the tightest spaces.
Behind a dashboard, near a fuse panel, or inside a bundle of vehicle wiring, identifying the correct cable isn't always easy.
The signal-based tracing system is intended to help distinguish a selected wiring path from surrounding cables.
Move the receiver along accessible sections of the harness and use the indicated signal response to guide further investigation.
Signal detection depends on circuit configuration, nearby wiring, shielding, and correct tool setup. Results require confirmation using appropriate diagnostic procedures.

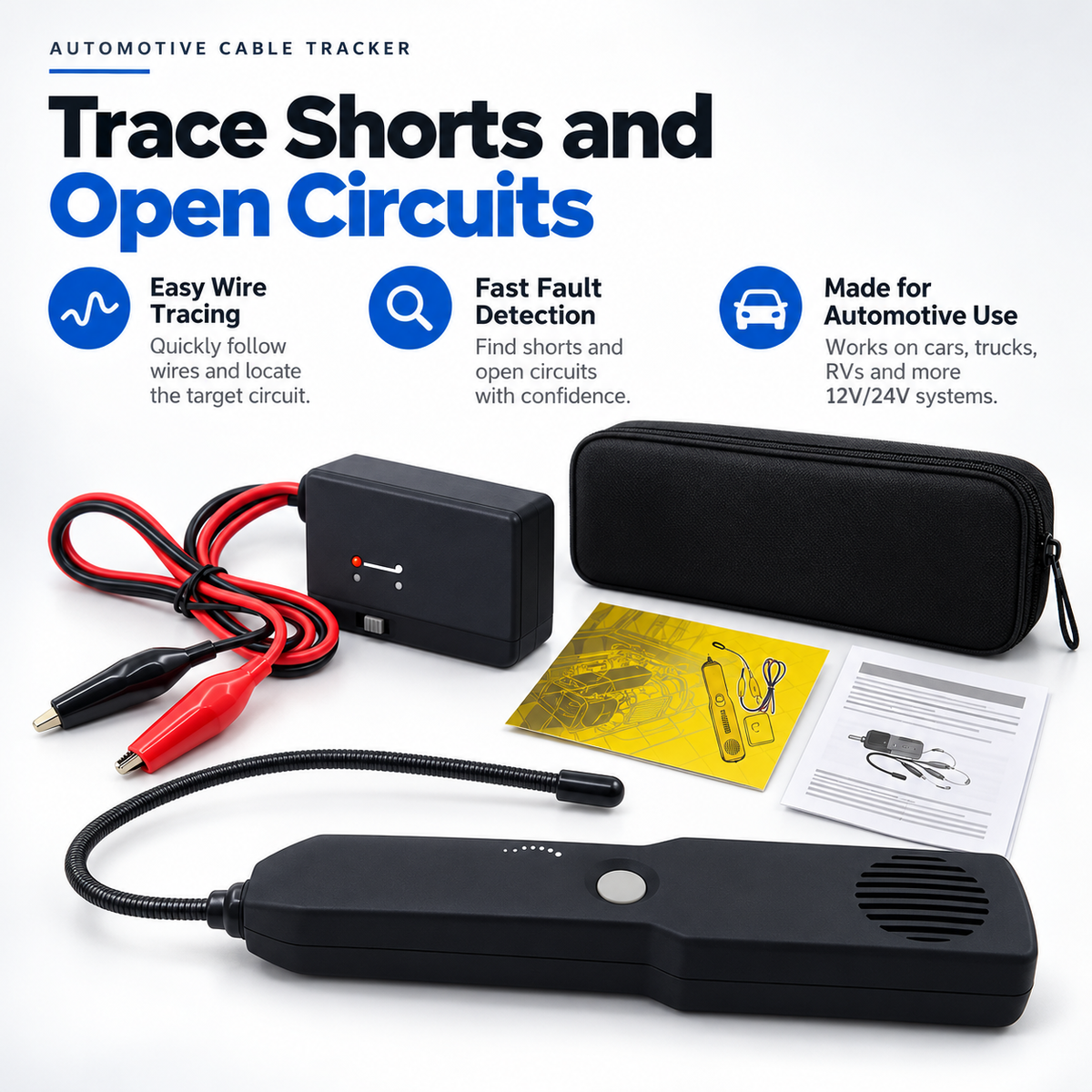

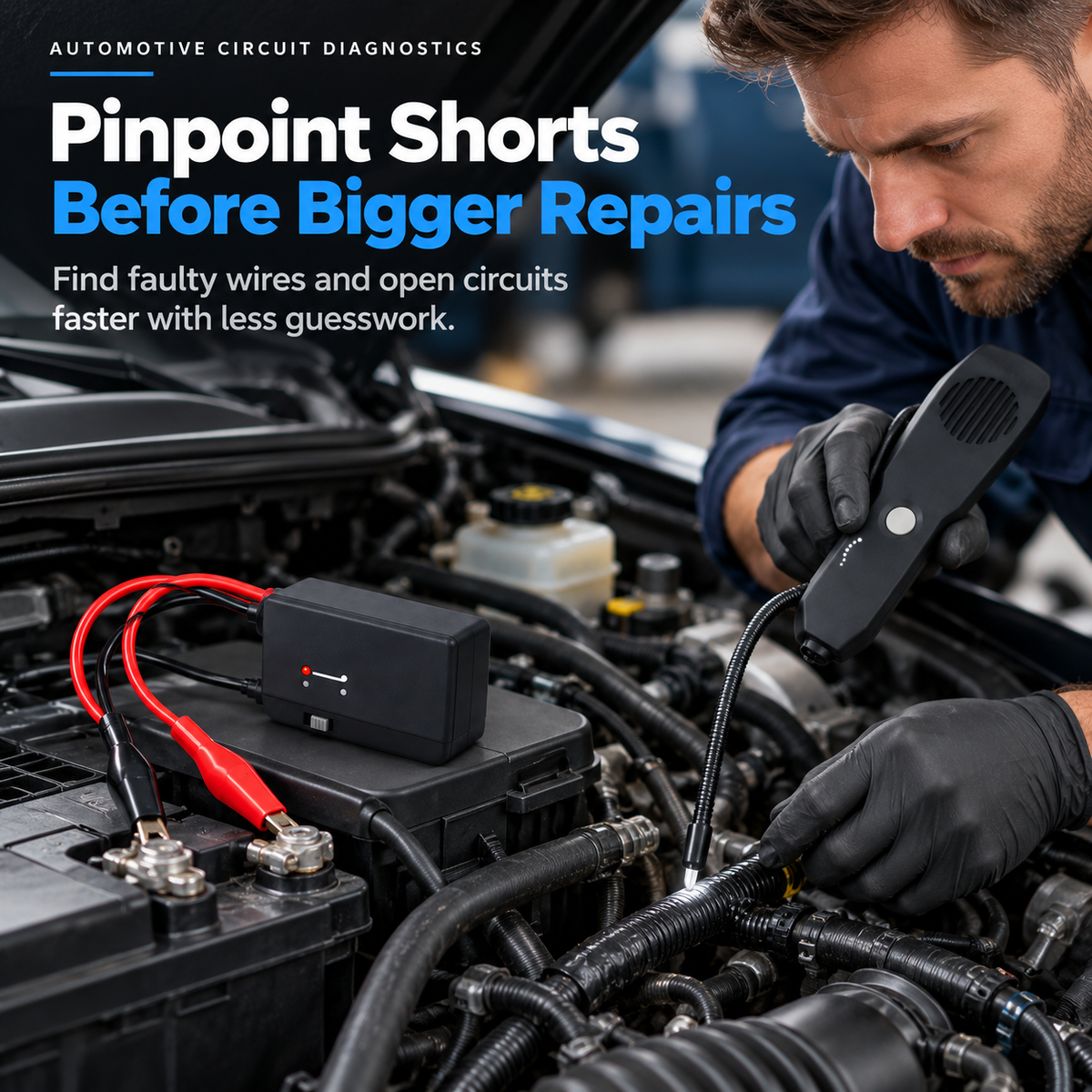

A Smarter Starting Point for Electrical Fault Finding.
When electricity doesn't follow the intended path, the problem may be hidden somewhere along the circuit.
This wire-tracing system is marketed for helping investigate short and open circuits in supported automotive wiring applications.
Instead of treating every wire in the harness as a suspect, use the transmitter and receiver to help narrow the area requiring inspection.
Then verify your findings with the appropriate vehicle service procedure and electrical tests.
A detected tracing signal is not, by itself, a definitive diagnosis of a short or open circuit. Confirm faults before replacing or repairing parts.

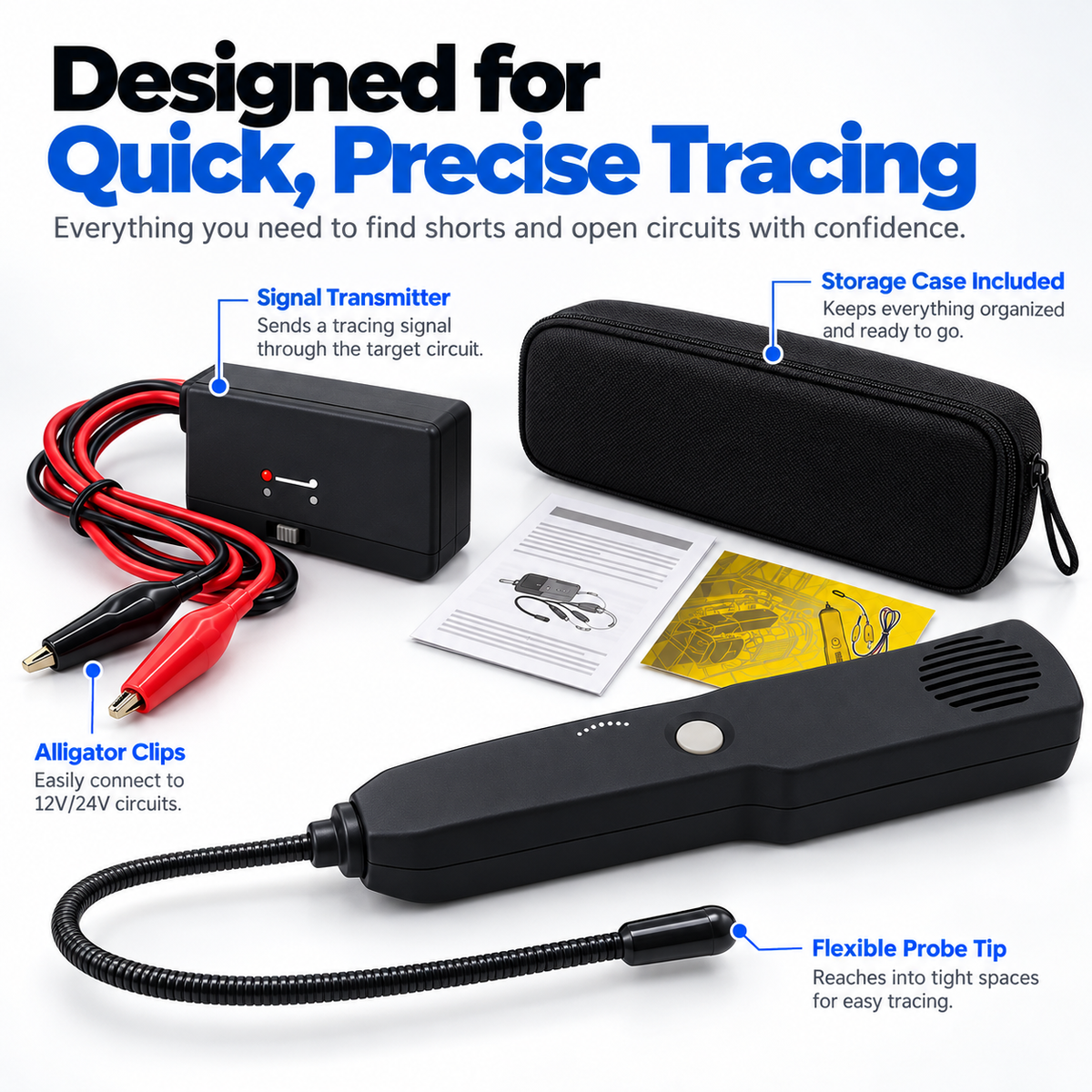

The Key Tools for Your Wire-Tracing Workflow.
A transmitter. A receiver. A flexible probe. Practical accessories to keep them together.
The featured kit brings together the main components needed for its signal-based wire-tracing process.
Designed Around Real-World Wiring Challenges.
Automotive wiring rarely runs in a perfectly straight, easy-to-reach line.
These design features help make the kit useful for an organized troubleshooting routine.
The bendable sensing tip can be positioned near accessible wiring in areas where a larger tool may be awkward.
Transmitter and receiver operation provides a way to follow supported wiring paths while investigating electrical faults.
The carrying case gives the main components a dedicated place between maintenance sessions.
A Useful Tool for Different Vehicle Wiring Projects.
Electrical wiring problems aren't limited to one vehicle category.
The product is presented for supported low-voltage automotive applications, including 12V and 24V vehicle systems.
Depending on the circuit design and manufacturer compatibility, it may be useful when investigating wiring on passenger vehicles, trucks, motorcycles, and selected recreational vehicles or equipment.
Compatibility is determined by the individual circuit and test conditions, not merely the type of vehicle.
From Hidden Cables to Hard-to-Follow Harnesses.
The most useful diagnostic tools help you approach common repair problems with a clearer method.
Always verify circuit conditions and follow the correct vehicle service procedure before connecting diagnostic equipment.
Connect. Trace. Verify.
A signal-based approach to locating wiring paths and investigating possible electrical faults.
Consult the vehicle's wiring diagram and tester instructions. Confirm the correct circuit condition and connection points before attaching the transmitter.
Position the receiver near accessible sections of the target wiring. Follow the tool's signal indications while checking the wiring route.
Use the tracing results to guide further inspection. Confirm suspected faults with appropriate electrical measurements and approved repair methods.
These steps describe the general tracing workflow, not a substitute for the product's electrical connection instructions. Circuit power conditions must be verified before testing.
Spend More Time Diagnosing. Less Time Guessing.
Electrical troubleshooting can be complicated. Your process doesn't have to be random.
Adding a dedicated tracing tool to your diagnostic routine gives you another way to investigate selected wiring problems methodically.
Signal tracing can help identify wiring paths worth inspecting more closely.
Use it alongside suitable multimeters, wiring diagrams, and approved troubleshooting methods.
Store the receiver, transmitter, clips, and instructions together in the carrying case.
Keep Your Diagnostic Tools Organized and Ready.
The best tool is the one you can find when you need it.
The featured zippered carrying case provides a dedicated storage place for the kit's main components.
Keep the cables, receiver, transmitter, and printed materials together between repair jobs.
A convenient addition to a home garage, mechanic's workbench, or vehicle-service tool collection.
A Closer Look at Your Automotive Tracing Kit.
A wire-tracing and electrical troubleshooting kit designed for supported vehicle low-voltage circuits.
Follow the manufacturer's tester manual and the vehicle's approved service procedures. Verify the circuit's voltage and power state before connecting the transmitter or receiver. Never connect this device to mains electricity, hybrid or electric vehicle high-voltage systems, or circuits outside the specified ratings. Avoid airbag, seat-belt pretensioner, safety-critical electronic, and sensitive control-module circuits unless expressly approved by the manufacturer. Never attach or remove electrical clips while making unsafe connections. Use suitable personal protection, and confirm any suspected fault with appropriate tests.
Questions Before Your Next Electrical Repair?
Helpful answers about wire tracing, vehicle compatibility, connection methods, and safe operation.
What does an automotive wire tracer do?
A wire tracer uses a transmitter and receiver to help follow the path of supported electrical wiring. The receiver responds to the tracing signal, which can help guide further inspection of a wiring harness.
Can this tester help find short and open circuits?
The product is marketed for investigating short and open circuits in supported automotive applications. It can help narrow the area being checked, but suspected faults should always be confirmed through the correct vehicle diagnostic procedures.
Is it designed for 12V and 24V vehicles?
The product listing advertises 12V/24V automotive applications. Before use, verify the instrument's actual electrical ratings and confirm that the specific circuit is supported.
Can I trace wires behind a dashboard?
Dashboard wiring is one of the featured applications. The handheld receiver and flexible probe can help investigate accessible wiring routes in supported circuit configurations.
How do the transmitter and receiver work together?
The transmitter introduces a tracing signal into a supported target circuit. The receiver is moved near accessible wiring to help identify the signal path. Follow the supplied instructions for correct setup.
Do I need to cut or strip wires to use it?
The kit is intended for signal-based tracing with approved connection points. Cutting or stripping wires should not be assumed necessary. Follow the vehicle and tester instructions and avoid damaging insulation or electrical components.
Can it be connected to a live circuit?
This depends on the precise test method and instrument ratings. Never assume that a circuit may remain energized. Follow the manufacturer's connection instructions and verify the required power state before testing.
Will it work on every car or truck?
Universal compatibility is not guaranteed. A vehicle may contain many different circuit types, voltages, electronic modules, and safety systems. Confirm suitability for the exact circuit being tested.
Can I use it on hybrid or electric vehicles?
Do not use the tracer on a hybrid or electric vehicle's high-voltage traction system. Any permitted low-voltage application must be specifically supported by the tool instructions and the vehicle's approved service procedure.
Does the kit include a flexible probe?
Yes. The product images show a handheld receiver fitted with a flexible tracing probe intended to help access tighter wiring areas.
Does it come with a storage case?
A zippered storage case is pictured with the complete diagnostic kit. Confirm the exact included contents of your selected package before checkout.
Is it a replacement for a multimeter?
No. A wire tracer serves a different diagnostic purpose. Voltage, resistance, continuity, and other electrical measurements may still require appropriate dedicated test instruments.
Is it suitable for DIY vehicle maintenance?
It may be useful for people familiar with automotive electrical diagnostics. However, safe operation requires understanding the tested circuit and following the correct procedures. Consult a qualified technician when unsure.
What is included in my order?
The featured kit shows a transmitter, handheld receiver, flexible probe, connection clips, storage case, and instruction materials. Review your selected product or bundle option for the confirmed package contents.
Don't Let One Hidden Wire Turn into Hours of Guesswork.
Complicated wiring paths. Unexpected electrical faults. Connections hidden out of sight.
Give yourself another way to investigate the problem with a signal-based automotive wire tracing kit.
Follow supported circuits, investigate possible fault locations, and keep your diagnostic tools organized and ready for the next repair.
🔧 EXPLORE THE WIRE TRACING KITReview the product's electrical ratings, circuit compatibility, package contents, and available quantity options before checkout.
