Internal baffling helps redirect crankcase vapor through the chamber.
š„ VaporGuardā¢ 300ML Baffled Oil Catch Can Kit ā Cleaner Intake, Smarter Engine Care
š„ VaporGuardā¢ 300ML Baffled Oil Catch Can Kit ā Cleaner Intake, Smarter Engine Care
Regular price
$49.99
Regular price
$49.99
Sale price
Unit price
per
BUNDLE & SAVE
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
š„ VaporGuardā¢ 300ML Baffled Oil Catch Can Kit ā Cleaner Intake, Smarter Engine Care
Regular price
$49.99
Regular price
$49.99
Sale price
Unit price
per
āļø 300ML ā¢ BAFFLED ā¢ COMPLETE HOSE KIT
Put A Separation Stage Between Crankcase Vapor And Your Intake.
VaporGuardā¢ gives oil mist and moisture a baffled collection chamber before the remaining vapor continues through a compatible crankcase-ventilation setup.
Engine-specific fitment matters. Verify PCV routing, hose sizes, fittings and available mounting space before installation.
300ML Reservoir Removable Baffle Filter Media Dipstick M16 Ć 1.5 Ports
300ML Reservoir Removable Baffle Filter Media Dipstick M16 Ć 1.5 Ports
Oil Mist Moisture Crankcase Vapor PCV Routing Serviceable Collection
Oil Mist Moisture Crankcase Vapor PCV Routing Serviceable Collection

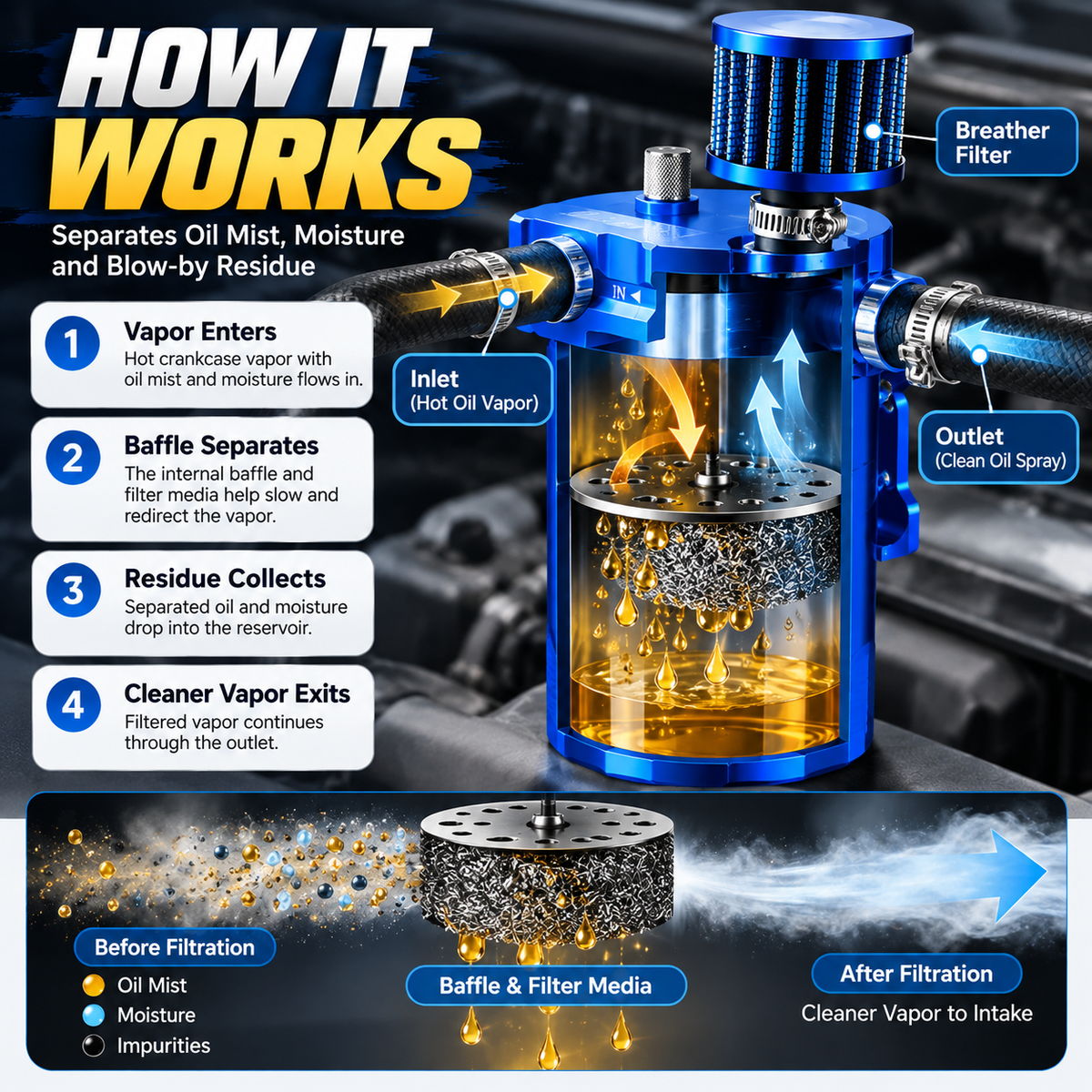

BAFFLED VAPOR SEPARATION
Slow It Down. Redirect It. Give Oil Mist A Place To Drop Out.
Instead of functioning like a simple empty container, VaporGuardā¢ routes crankcase vapor through an internal separation structure before the remaining vapor exits.
01
Vapor Enters
Oil mist and moisture travel into the inlet.
02
Baffle Redirects
Internal structure helps slow and redirect the vapor stream.
03
Residue Collects
Separated oil and moisture settle into the reservoir.
04
Vapor Continues
The remaining vapor exits through the configured outlet.

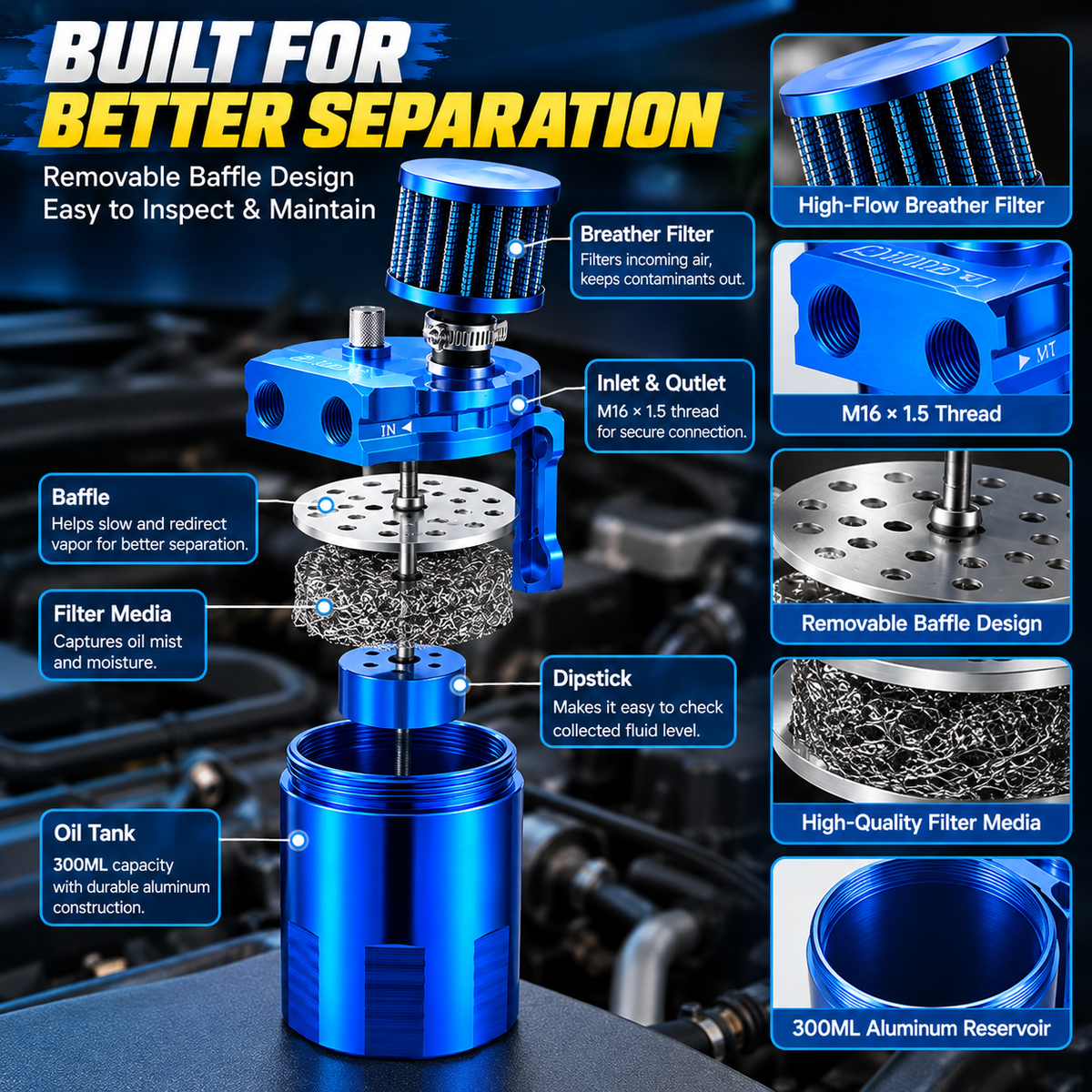

BUILT FOR BETTER SEPARATION
More Than An Empty Aluminum Reservoir.
The internal assembly gives crankcase vapor more surface area and a less direct path, helping suspended oil mist and moisture separate before reaching the lower collection area.
āļø Removable Baffle Internal plate helps redirect the vapor path.
ā Filter Media Adds contact surface inside the separation chamber.
š Dipstick Helps monitor collected-fluid level.
š¢ļø 300ML Reservoir Compact collection chamber for separated residue.

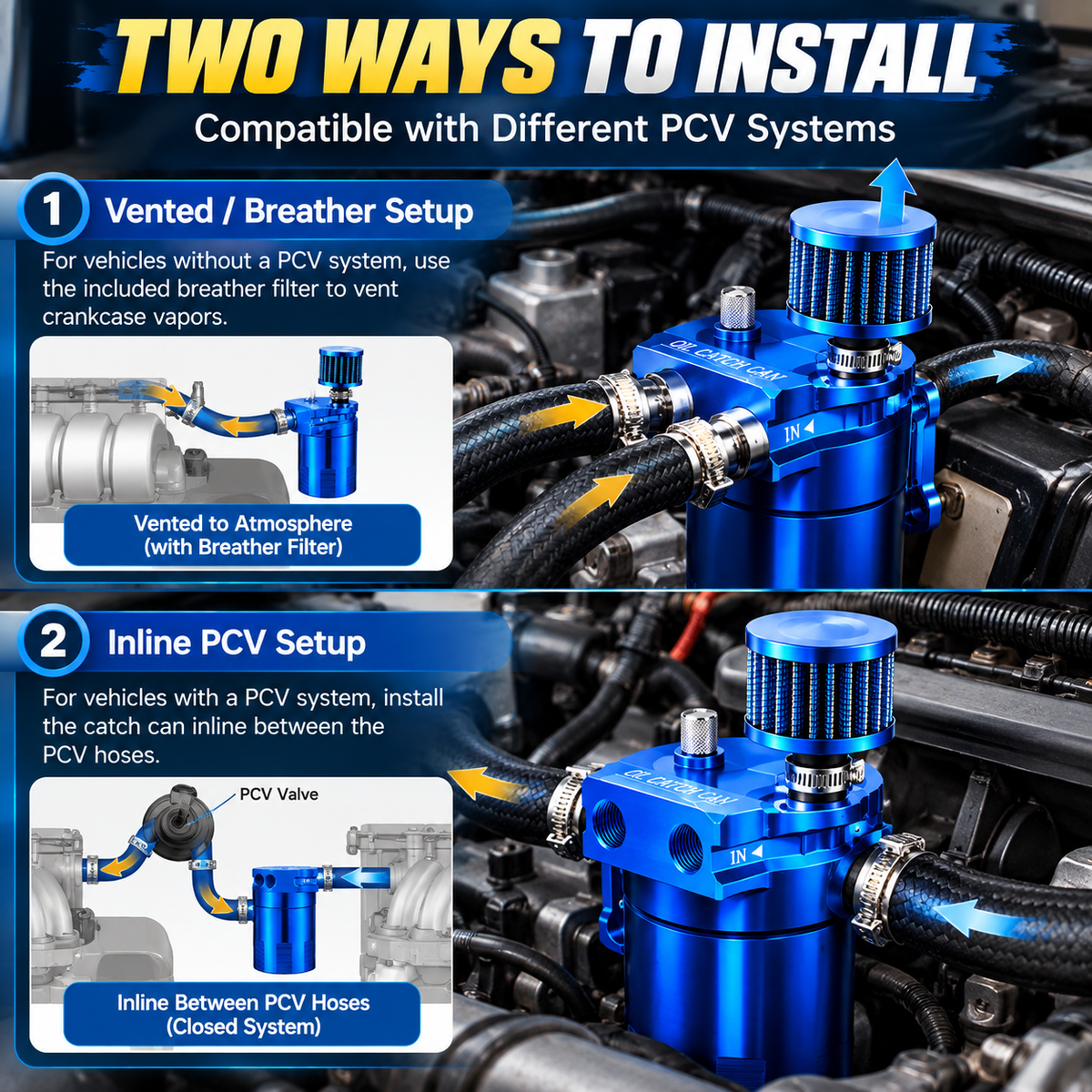

VEHICLE-SPECIFIC ROUTING MATTERS
Two Common ConfigurationsāBut Not Two Universal Choices.
The kit can support different crankcase-ventilation layouts, but the correct routing depends on your specific engine and factory PCV system.
Vented / Breather Configuration
The supplied breather filter may be used on compatible applications designed for an appropriate vented arrangement.
Inline PCV Configuration
On compatible closed systems, the catch can may be routed inline between appropriate PCV hoses.
Important: Do not convert a factory closed emissions-related crankcase-ventilation system to an open vented arrangement without confirming vehicle requirements and applicable regulations.

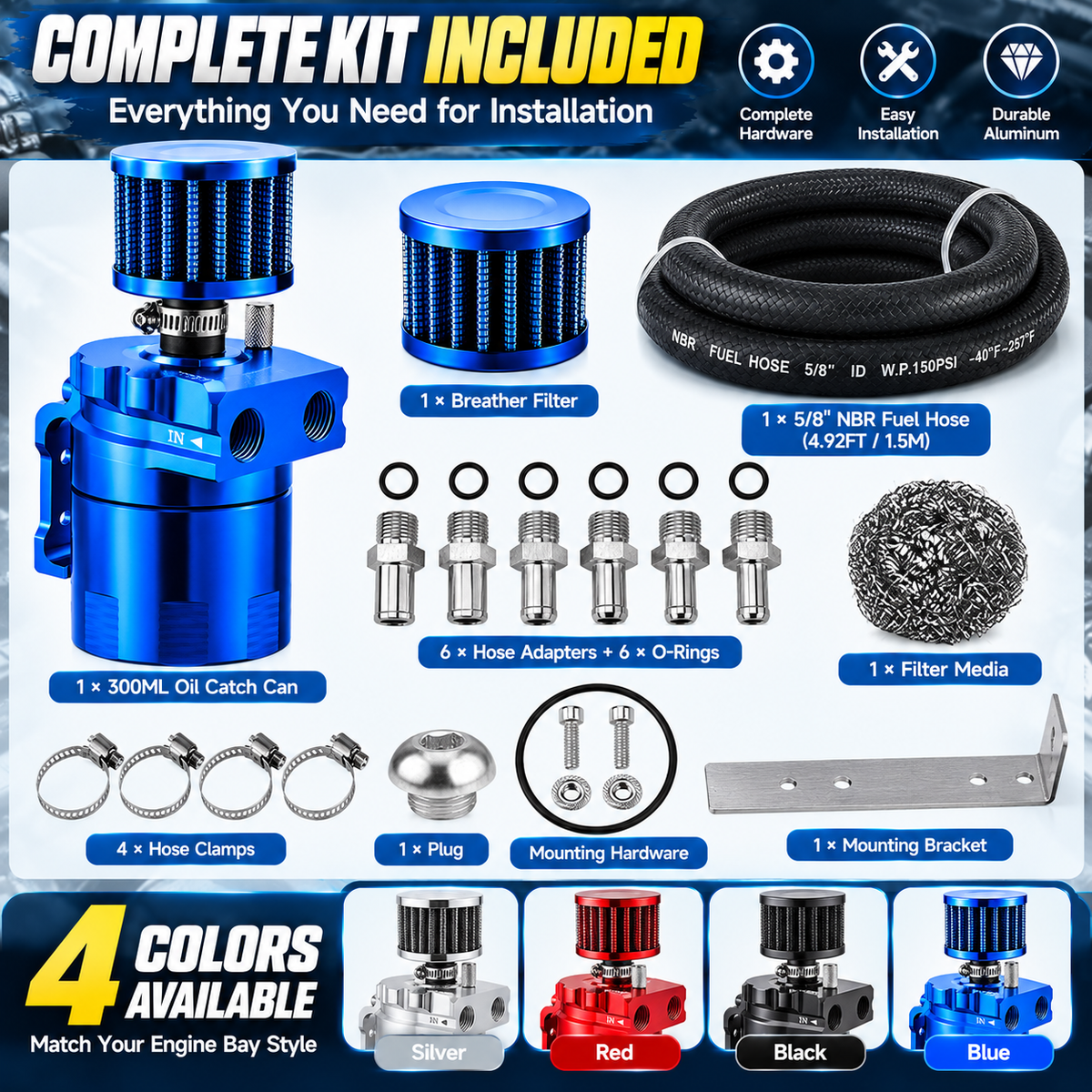

CORE INSTALLATION HARDWARE INCLUDED
More Than The Can Comes In The Kit.
The current package includes the core catch-can components and general-purpose installation hardware shown, giving compatible applications a more complete starting point.
1 Ć 300ML Catch Can Aluminum reservoir with internal separation components.
1 Ć Breather Filter For compatible vented configurations.
1 Ć 1.5m NBR Hose 5/8" ID hose supplied with the current kit.
Hardware Set Adapters, O-rings, clamps, plug, bracket and fasteners.
Fitment note: āComplete kitā does not mean every vehicle will install without additional vehicle-specific parts. Verify your hose sizes, fittings and mounting location first.

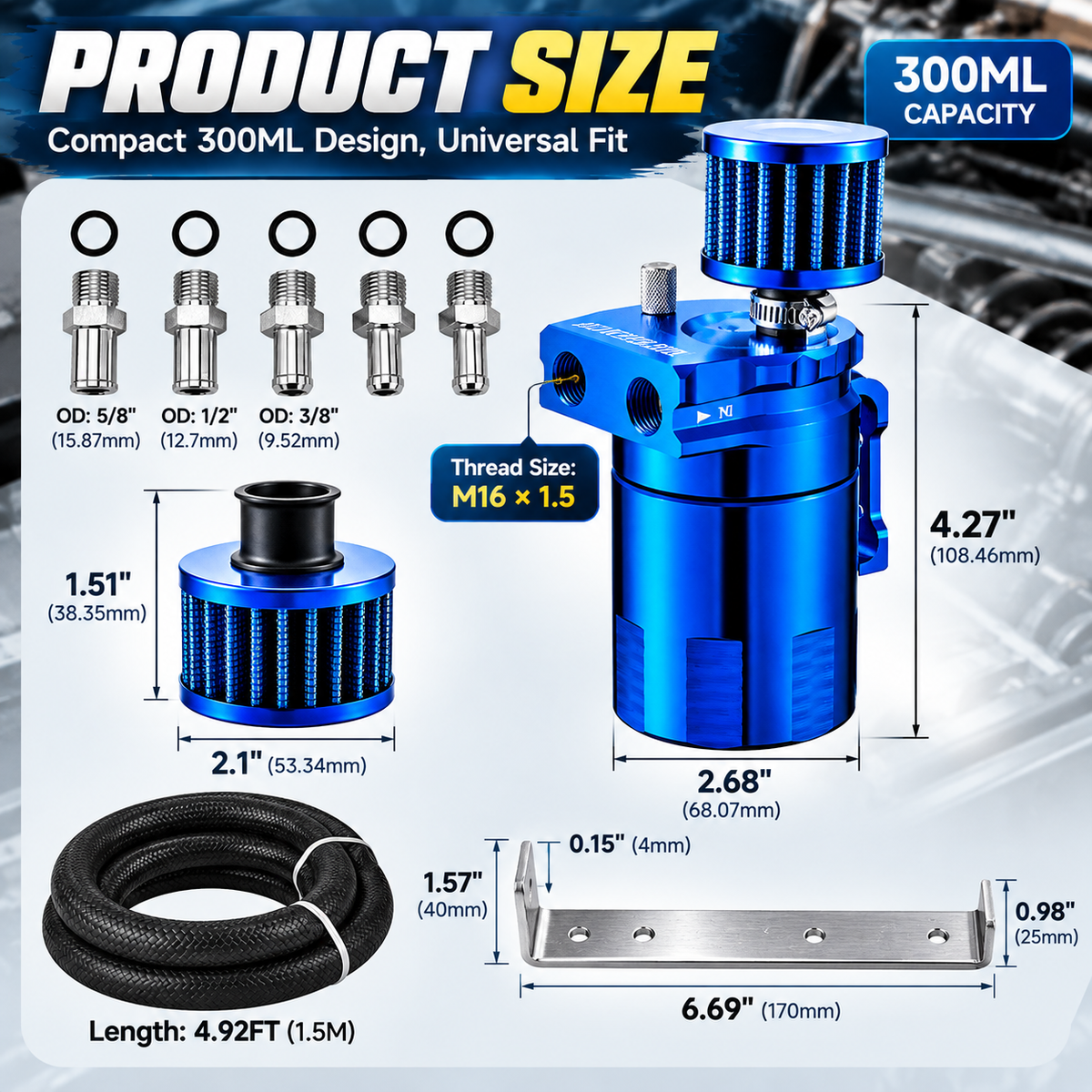

MEASURE THE ENGINE BAY FIRST
Compact 300ML SizeāWith Real Dimensions To Check Before Ordering.
A universal-style component still needs enough physical room for the can, bracket, hoses and service access.
Approx. 4.27" Tall
Pictured catch-can height: approximately 108.46 mm.
Approx. 2.68" Diameter
Pictured body diameter: approximately 68.07 mm.
M16 Ć 1.5 Ports
Thread specification shown on current size artwork.
Multiple Adapter Sizes
Current artwork shows 5/8", 1/2" and 3/8" hose-adapter options.

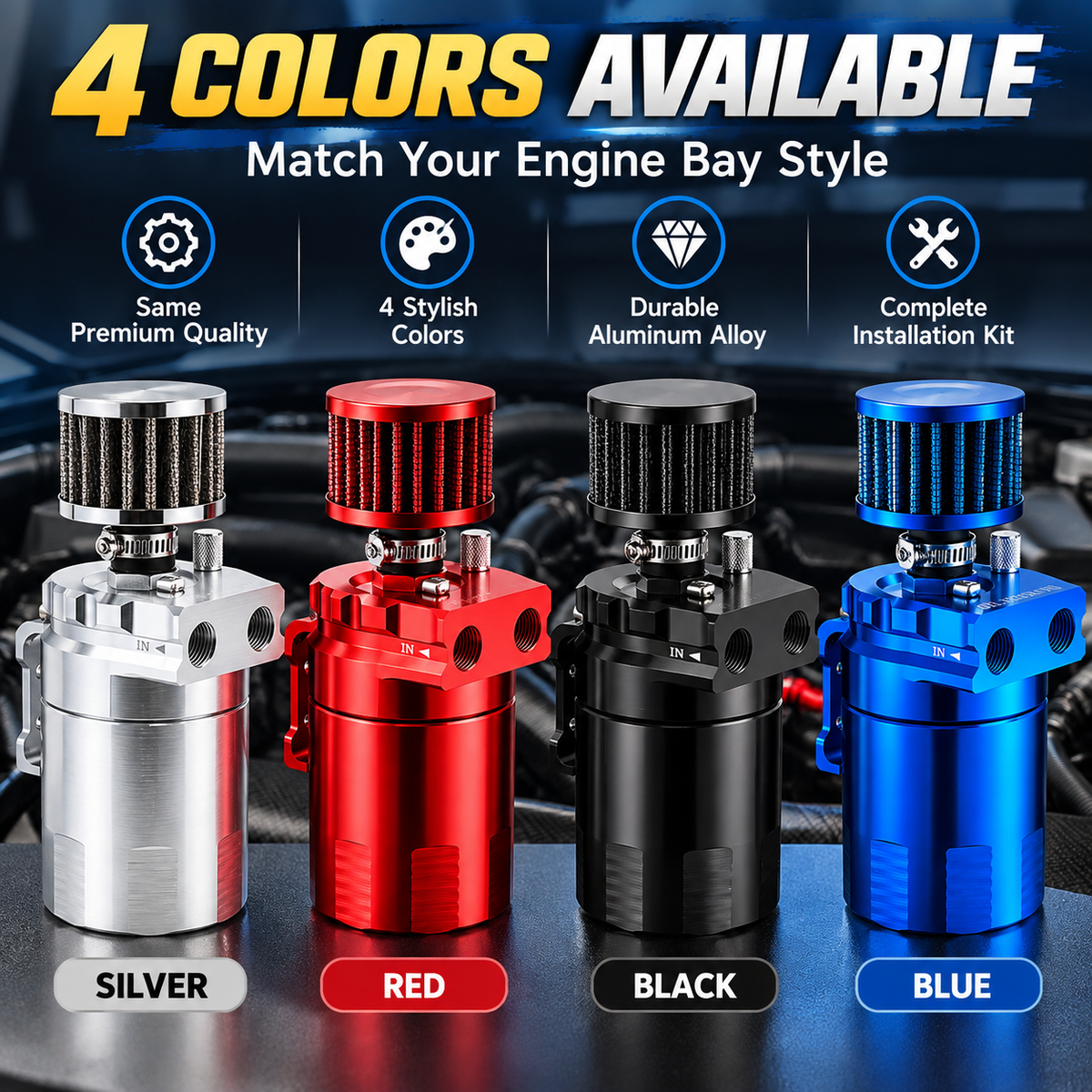

FOUR ENGINE-BAY FINISHES
Choose The Finish That Makes Sense In Your Build.
The current product range is shown in four finish options.
Silver
Red
Black
Blue
Color changes the appearanceā not the need to verify fitment and routing.

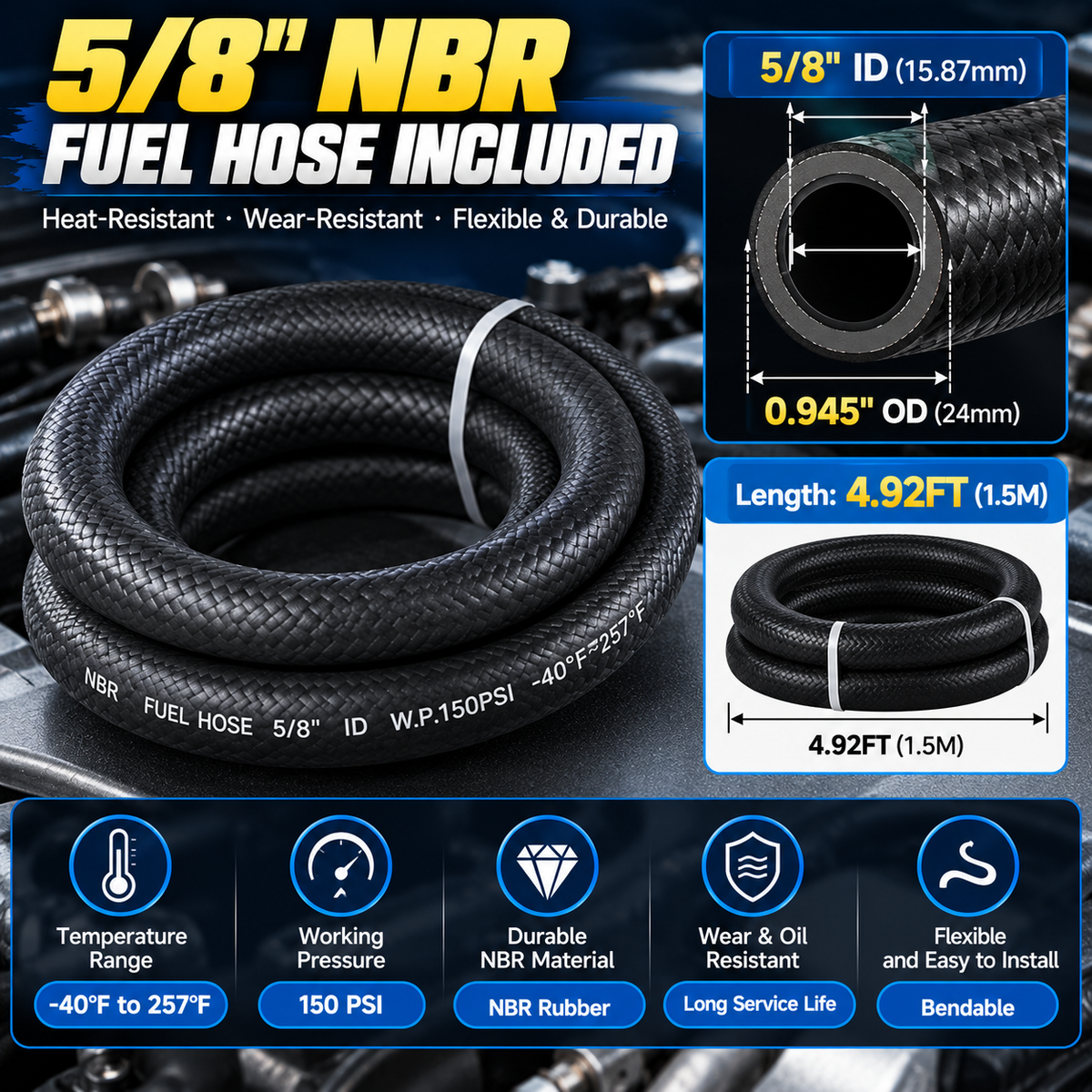

5/8" NBR HOSE INCLUDED
The Hose Specification Isnāt A Mystery.
The supplied hose is identified in current product artwork as NBR rubber with a 5/8" internal diameter and 4.92 ft / 1.5 m length.
5/8" ID 15.87 mm internal diameter.
0.945" OD 24 mm outside diameter.
4.92 ft 1.5 m supplied length.
NBR Rubber Material identified on current seller artwork.
Current seller artwork also lists a 150 PSI working-pressure specification and a -40Ā°F to 257Ā°F stated temperature range for the supplied hose.
PRODUCT HIGHLIGHTS
A Serviceable Collection Stage For A Compatible PCV Setup.
Adds internal surface area for oil mist and moisture separation.
Gives separated residue a dedicated collection area.
Hose, adapters, clamps, O-rings and bracket are included.
PRODUCT SPECIFICATIONS
The Important Numbers Before You Start Routing Hose.
| Product | VaporGuardā¢ Baffled Oil Catch Can Kit |
|---|---|
| Reservoir Capacity | 300ML |
| Reservoir Material | Aluminum |
| Internal Design | Removable baffle + filter media |
| Fluid-Level Check | Dipstick |
| Port Thread | M16 Ć 1.5 |
| Pictured Can Size | Approx. 4.27" H Ć 2.68" diameter |
| Supplied Hose | NBR ā¢ 5/8" ID ā¢ 0.945" OD ā¢ 4.92 ft / 1.5 m |
| Hose Working Pressure | 150 PSI stated on current seller artwork |
| Hose Temperature Range | -40Ā°F to 257Ā°F stated on current seller artwork |
| Adapter Sizes Shown | 5/8" ā¢ 1/2" ā¢ 3/8" |
| Current Colors | Silver ā¢ Red ā¢ Black ā¢ Blue |
Universal-style does not mean universal fit. Verify engine-bay space, hose diameter, adapter compatibility, mounting location and the correct crankcase-ventilation routing for your specific vehicle.
āļø COLD WEATHER = MORE ATTENTION
A Catch Can Is Something You MaintaināNot Something You Forget.
Moisture collected from crankcase vapor can become especially important in freezing weather.
If enough water accumulates and freezes, it may create an unwanted restriction. Inspect and empty the reservoir more frequently when operating below freezing.
BEFORE YOU INSTALL
Fitment, Routing & Maintenance Answers.
What does an oil catch can do?
This kit adds a collection chamber to a compatible crankcase-ventilation path. Its internal baffle and filter media are designed to help separate some suspended oil mist and moisture before the remaining vapor continues downstream.
Is this just an empty reservoir?
No. Current product materials show a removable internal baffle, filter media and a dipstick inside the 300ML catch-can design.
Will this fit every car?
No universal vehicle fit is guaranteed. Check available engine-bay space, PCV routing, hose diameter, supplied adapter compatibility and a suitable mounting location.
What thread size does the catch can use?
Current seller specifications identify the inlet/outlet thread as M16 Ć 1.5.
What hose is included?
Current product materials specify a 1.5 m / 4.92 ft NBR rubber hose with a 5/8" / 15.87 mm internal diameter and approximately 0.945" / 24 mm outside diameter.
Is the breather filter required?
Not every installation should use the same configuration. The supplied breather is shown for compatible vented setups, while other applications may require an inline closed-PCV arrangement. Follow the correct routing for your specific engine.
Can I vent the crankcase to atmosphere on any street car?
Do not assume so. Factory crankcase-ventilation systems may be part of a vehicle's certified emissions configuration, and emissions rules vary by jurisdiction. Confirm vehicle requirements and applicable regulations before altering factory routing.
Does this kit increase horsepower?
No verified horsepower increase is established by the current product materials. This kit is better understood as a crankcase-vapor separation and collection component.
Will it completely stop intake deposits?
No complete deposit-prevention guarantee is established. The product is designed to help separate and collect oil mist and moisture from a compatible vapor path; it does not clean existing deposits or guarantee that no residue will reach the intake.
How often should I empty the catch can?
Collection rate varies with the vehicle, engine condition, climate and driving pattern. Inspect it regularly rather than assuming a fixed interval. The current seller guidance specifically recommends more frequent inspection and cleaning in freezing conditions.
Why does cold weather matter?
Collected crankcase moisture can accumulate inside the reservoir. In freezing conditions that water may freeze and potentially create a restriction if maintenance is neglected. Check and empty the can more frequently in cold weather.
What comes in the current kit?
Current package artwork shows a 300ML aluminum catch can, breather filter, 1.5 m NBR hose, six hose adapters, six O-rings, four hose clamps, filter media, one plug, mounting bracket and mounting hardware.
āļø ADD A SERVICEABLE COLLECTION STAGE
Donāt Just Route The Vapor. Give The Residue Somewhere To Collect.
A removable baffle. Internal filter media. A 300ML aluminum reservoir. A dipstick you can check. And the core hose and hardware for a compatible installation.
Verify your PCV routing, choose the correct configuration, then add a collection point you can inspect, drain and maintain.
